Mesh Baskets

Woven test sieve

Woven test sieve
Woven test sieve
  • Category:Filter Screen
  • Material:stainless steel wire and plate, galvanized wire and plate
  • Properties:wear-resisting, convenient usage, and fit for grade sieve.
  • Application:mainly used for precise classification of the minute granule materials

Inquiry now

or

Send email

We highly appreciate your feedback. TEL: 0086-10-68287775
E-mail: sales@kingdametal.com

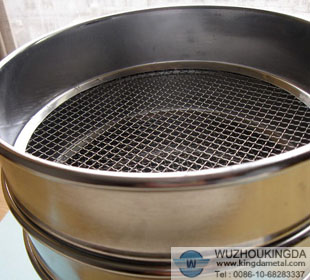

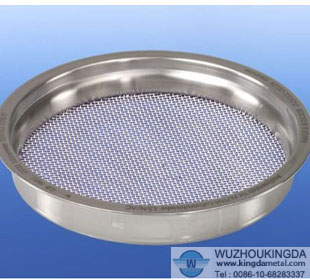

Woven test sieve
Test Sieves are accurately and optically constructed by placing wire cloth between two suppressed die formed frames. They are offered in brass or stainless steel or a combination of both.
Material: stainless steel wire and plate, galvanized wire and plate
Specifications:
Frame diameters are available as Φ200mm and Φ300mm.
Aperture sizes are as per 4.00mm, 4.75mm, 5.00mm, 5.60mm, 6.30mm, 6.70mm, 7.10mm, 8.00mm, 9.50mm, 10.0mm, 11.2mm, 12.5mm, 13.2mm, 14.0mm, 16.0mm, 19.0mm, 20.0mm, 25.0mm, 28.0mm, 31.5mm, 37.5mm, 40.0mm, 45.0mm, 50.0mm, 63.0mm, and 75.0mm
Characteristics: wear-resisting, convenient usage, and fit for grade sieve.
Applications of the woven test sieve:
It is mainly used for precise classification of the minute granule materials and It is widely used in metallurgy, abrasive, construction industries and research lab.
